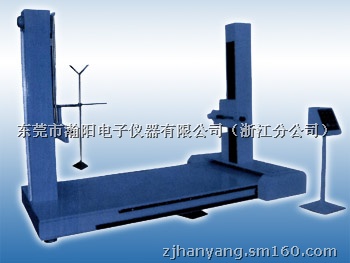

FZ-9802B包装跌落试验机
请选择 型号/数量
商品详情
FZ-9802B包装跌落试验机
PACKING DROP TESTER
本机专门测试产品包装后，受到坠落时之受损情况，及评估电子组件在搬运时，遭受落下之耐冲击强度。本机采用电磁控制，试料能瞬间自由落下，包装容器之棱、角、面均可测试。
This machine is designed specially for testing the damage of those packaged products which fall down to the ground，and it can evaluate the impact-resistance strength of electronic assembly which falls down during transporation。This machine is controlled by an electromagnetic device which can drop down the specimen freely and immediately。All the
rhombohedron，angle，face of the package container can be tested。
PACKING DROP TESTER
本机专门测试产品包装后，受到坠落时之受损情况，及评估电子组件在搬运时，遭受落下之耐冲击强度。本机采用电磁控制，试料能瞬间自由落下，包装容器之棱、角、面均可测试。
This machine is designed specially for testing the damage of those packaged products which fall down to the ground，and it can evaluate the impact-resistance strength of electronic assembly which falls down during transporation。This machine is controlled by an electromagnetic device which can drop down the specimen freely and immediately。All the
rhombohedron，angle，face of the package container can be tested。
| 跌落高度 Drop height range | 350mm ~ 2000mm |
| 试件最大重量 Load weight | 约 250kg |
| 试件最大尺寸 Test space | 2200mm x 1600mm |
| 冲击面板尺寸 Base area | 3300mm x 1800mm |
| 上升、下降速度 Up-down speed | 150mm / min |
| 坠落方式 Method of drop | 对面坠落、对棱坠落、对角坠落 |
| 坠落控制 Control of drop | 电磁离合方式 |
| 体积 Dimension | 3300 x 1800 x 2100mm |
| 重量 Weight | 约 2500kg |
| 电源 Power | AC220V / 50Hz |
