商品详情

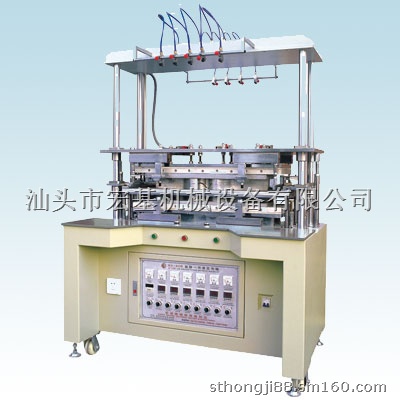

KV-90B-1 一件围定型机
KV-90B-1 One Piece Bra Molding Machine

用途： 主要用于内衣一件围产品的定型生产。

特点：

(1) 该机采用高强度机身设计。结构美观精巧，起落平稳。铝模板加热均匀，升温快。

(2) 采用弹簧驱动下压框和多达9个的红外线探灯定位，调节自如，定位准，产品成型率高。

技术参数：

电源/功率：220V/9KW

电热片规格：Φ 12×280mm×500W-220V

模台尺寸：900mm×280mm(可选装)

机台尺寸：1300mm×815mm×1800mm

适用物料：文胸、服装等面料

适用模具：文胸棉模及定布模具

重量：1000KG

Function：

This kind of machine is mainly used for molding one piece bras.

Features:

(1) This kind of machine adopts the fuselage design with high strength, which is delicate and exquisite in structure and lifts steadily. It uses the aluminum mould to heat evenly and quickly.

(2) Using the spring-actuated pressing frame and no less than 9 infrared searching lights for positioning, it can adjust freely and bears the features such as high molding rate and good positioning.

Technical parameter:

①    Power supply/ power:220V/9KW

②    Specification of the electrothermal pipe: Φ 12×280mm×500W-220V

③    Dimension of the mould table: 900mm×280mm(selection)

④    Dimension of the machine: 1300mm×815mm×1800mm

⑤    Applicable material: foam or fabric for bras and other garments

⑥    Applicable moulds: moulds for foam bra cup and fabric cup

⑦    Weight: 1000KG
