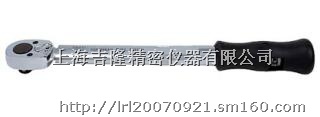

日本东日PQL140N扭力扳手
请选择 型号/数量
商品详情
| Model | Torque Range | Overall Lgth. | Square Drive | Weight approx. | ||||||||||
| S.I. | Metric | American | Min.-Max. | Graduation | ||||||||||
| S.I. | Metric | American | S.I. | Metric | American | mm | in. | mm | in. | kg | lb. | |||
| PQL6N4 | 60PQL4 | *60PQL-A | N.m 1-6 | kgf.cm 10-60 | in.lbs * | N.m 0.05 | kgf.cm 1 | in.lbs * | 190 | * | 6.35 | 1/4 | 0.19 | * |
| PQL12N4 | 120PQL4 | *120PQL-A | 2-12 | 20-120 | * | 0.1 | 2 | * | 220 | * | 0.19 | * | ||
| PQL25N | 225PQL | 225PQL-A | 5-25 | 50-250 | 50-200 | 0.25 | 2.5 | 2.5 | 215 | 8 15/32 | 9.53 | 3/8 | 0.25 | 9/16 |
| PQL50N | 450PQL | 450PQL-A | 10-50 | 100-500 | 100-400 | 0.5 | 5 | 5 | 250 | 9 27/32 | 0.40 | 31/32 | ||
| PQL100N4 | 900PQL4 | 900PQL-A | 20-100 | 200-1000 | ft.lbs 15-75 | 1 | 10 | ft.lbs 1 | 320 | 12 13/16 | 12.7 | 1/2 | 0.65 | 1 7/16 |
| PQL140N | 1400PQL | 1400PQL-A | 30-140 | 300-1400 | 30-100 | 385 | 15 1/8 | 0.75 | 1 21/32 | |||||
| PQL200N4 | 1800PQL4 | 1800PQL4-A | 40-200 | 400-2000 | 30-150 | 2 | 20 | 2 | 470 | 18 15/32 | 1.40 | 3 3/32 | ||
