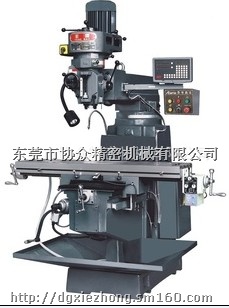

供应丰堡FTM-5TA铣床，东莞丰堡分公司
请选择 型号/数量
商品详情
丰堡铣床商品描述：,
1，丰堡專利機種：改良型角牙座強度為傳統5倍
傳統機種：傳統較為單薄強度差
傳統機種：傳統較為單薄強度差
Fengbao New Models:
The renovated Feed nut bracket is 5 times stronger than traditional ones in terms of rigidity.
Traditional Models:
The traditional ones are weak in rigidity
2，豐堡專利機種：X.Y軸軸承作為鑄鐵材質剛性好，不易變形
傳統機種：X.Y軸軸承座為鑄鋁熱脹冷縮變形
Fengbao New Models:
The bearings for Axis-X & Y are made of cast iron ,with good rigidity and less deformation.
Traditional Models:
The bearings bracket for Axis-X &Y are made of cast aluminum , which is easy to expand when hot and to shrink when cold
3，丰堡铣床主軸由臺灣原裝進口，配合精密軸承與精密螺帽，確保最高精度。The spindle is imported form Taiwan and all with high precisian bearing and nut to ensure high accuracy.
規格 | Specification | 5TA |
工作臺尺寸(長x寬) | Table size(LxW) | 1370X305mm |
工作臺負載 | Machine load ontable | 300kg |
左右行程(X) | Longitudind traverse (X) | 720mm |
前後行程(Y) | Cross travel (Y) | 410mm |
上下行程(Z) | Vertical travel (Z) | 380mm |
主軸至工作臺距離 | Spindle nose to table | 110-490mm |
伸出臂行程 | Overarm travel | 500mm |
主軸升降行程 | Quill feeds | 127mm |
主軸自動進給速度 | Quill feed speeds | 0.04/0.08/0.15mm/rev |
主軸速度 | Spindle speed(R、P、M) | 16steps 80-5440rmp |
主軸錐度 | Spindle taper | NT40 |
主軸馬力 | Spindle motor | 5HP |
銑頭傾斜角度 | Head tilt | 前後/左右45° |
導軌形狀X.Y.Z | Guiding tracks, X.Y.Z | ▲.■. ■ |
機床尺寸(長x寬x高) | Machine dimension(LxWxH) | 1630x1900x2300mm |
機械重量 | Machine Weight | 1650kg |
導軌型狀:▲:鳩尾型軌道Dovetail slide way ■:四方型軌道Square slide way
本公司保有變更設計之權利，如有更改恕不另行通知
本目錄顏色及配件只作參考，出廠以實物為主
All specification and designs are subject to change without notice.
Machine color and equipment in this catalogue are for reference purpose only.
