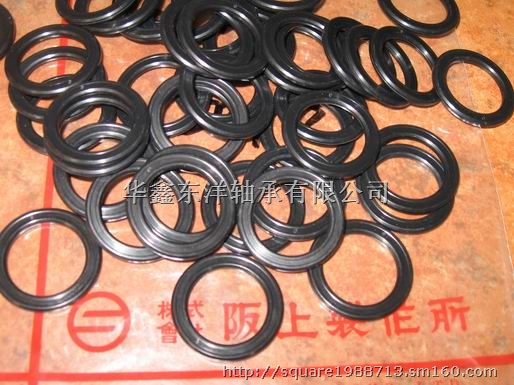

SGY-90A日本板上活塞油封气动密封件天津华鑫东
请选择 型号/数量
商品详情
型号明细 | 密封件的公称尺寸及腔体尺寸(単位：mm） | ||||||||
标准 |
| D | d | H | D1 | D2 | GA | GB | L |
*(T)SGY-40A | TCS-40×30 | 40 | 30 | 6.3 | 39 | 39.5 | 7 | 8.5 | 3.5 |
*(T)SGY-45A | TCS-45×35 | 45 | 35 | 6.3 | 44 | 44.5 | 7 | 8.5 | 3.5 |
*(T)SGY-50A | TCS-50×40 | 50 | 40 | 6.3 | 49 | 49.5 | 7 | 8.5 | 3.5 |
*(T)SGY-55A | TCS-55×45 | 55 | 45 | 6.3 | 54 | 54.4 | 7 | 8.5 | 3.5 |
*(T)SGY-60A | TCS-60×50 | 60 | 50 | 6.3 | 59 | 59.4 | 7 | 8.5 | 3.5 |
*(T)SGY-65 | TCS-65×55 | 65 | 55 | 6.3 | 64 | 64.4 | 7 | 8.5 | 3.5 |
*(T)SGY-70 | *TCS-70×60 | 70 | 60 | 6.3 | 69 | 69.4 | 7 | 8.5 | 3.5 |
*(T)SGY-70A | *TCS-70×57 | 70 | 57 | 7.7 | 69 | 69.4 | 8.5 | 10.5 | 4.5 |
*(T)SGY-75 | *TCS-75×65 | 75 | 65 | 6.3 | 74 | 74.4 | 7 | 8.5 | 4.5 |
*(T)SGY-75A | *TCS-75×62 | 75 | 62 | 7.7 | 74 | 74.4 | 8.5 | 10.5 | 4.5 |
*(T)SGY-80 | *TCS-80×71 | 80 | 71 | 6.3 | 79 | 79.4 | 7 | 8.5 | 4.5 |
*(T)SGY-80A | *TCS-80×65 | 80 | 65 | 9.2 | 79 | 79.4 | 10 | 12 | 4.5 |
*(T)SGY-85 | TCS-85×75 | 85 | 75 | 6.3 | 84 | 84.4 | 7 | 8.5 | 4.5 |
*(T)SGY-85A | *TCS-85×70 | 85 | 70 | 9.2 | 84 | 84.4 | 10 | 12 | 4.5 |
*(T)SGY-90 | *TCS-90×80 | 90 | 80 | 6.3 | 89 | 89.4 | 7 | 8.5 | 4.5 |
*(T)SGY-90A | *TCS-90×75 | 90 | 75 | 9.2 | 89 | 89.4 | 10 | 12 | 4.5 |
*(T)SGY-95A | *TCS-95×80 | 95 | 80 | 9.2 | 94 | 94.4 | 10 | 12 | 4.5 |
*(T)SGY-95B | *TCS-95×85 | 95 | 85 | 6.3 | 94 | 94.4 | 7 | 8.5 | 4.5 |
*(T)SGY-100 | TCS-100×85 | 100 | 85 | 9.2 | 98 | 99.4 | 10 | 12 | 4.5 |
*(T)SGY-105 | *TCS-105×90 | 105 | 90 | 9.2 | 103 | 104.4 | 10 | 12 | 4.5 |
*(T)SGY-110 | *TCS-110×95 | 110 | 95 | 9.2 | 108 | 109.4 | 10 | 12 | 4.5 |
*(T)SGY-115 | *TCS-115×100 | 115 | 100 | 9.2 | 113 | 114.4 | 10 | 12 | 4.5 |
*(T)SGY-120 | *TCS-120×106 | 120 | 106 | 8.7 | 118 | 119.4 | 9.5 | 11.5 | 4.5 |
*(T)SGY-125 | *TCS-125×112 | 125 | 112 | 9.2 | 123 | 124.3 | 10 | 12 | 4.5 |
*(T)SGY-130 | *TCS-130×115 | 130 | 115 | 8.7 | 128 | 129.3 | 9.5 | 11.5 | 4.5 |
*(T)SGY-140 | *TCS-140×125 | 140 | 125 | 9.2 | 138 | 139.3 | 10 | 12 | 4.5 |
*(T)SGY-150 | *TCS-150×136 | 150 | 136 | 8.7 | 148 | 149.3 | 9.5 | 11.5 | 4.5 |
*(T)SGY-160 | *TCS-160×145 | 160 | 145 | 9.2 | 158 | 159.3 | 10 | 12 | 4.5 |
*(T)SGY-180 | TCS-180×165 | 180 | 165 | 9.2 | 178 | 179.3 | 10 | 12 | 4.5 |
*(T)SGY-200 | *TCS-200×180 | 200 | 180 | 12 | 198 | 199.2 | 13 | 15.5 | 5.5 |
