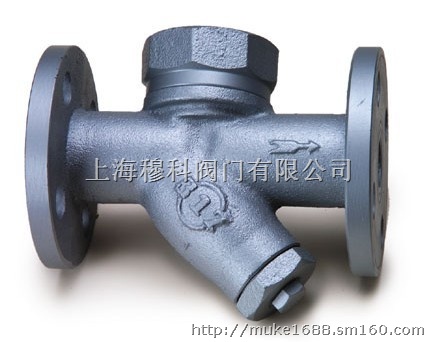

| 台湾317法兰热动力疏水阀
* Please name the model No. (ST-T3F) when negotiation. | * End Flange Dimensions: Acc. to JIS 10K or ANSI 150 LBS. | * Max. Temperature: 220℃ |
| * Test Pressure: Body 32 kgf/cm2(Hydrostatic) | * Working Pressure: 0.3 kgf/cm2 – 16 kgf/cm2 |
| Material: | Model: | ST-T3F |
|
| Body | IRON |
| Bonnet/Plug | IRON |
| Seat | SS 410 |
| Disc | SS 304 |
| Seal | PTFE |
|
| Packing | PTFE |
|
| Screen | SS 304 |
|
DIMENSION | mm | Size | inch | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
| L | 142 | 160 | 182 | 244 | 244 | 268 |
| H | 67 | 73 | 92 | 107 | 107 | 125 |
|
|
Capacity: |
|
|
|
|
|
|
|
|
|
| Kgf/H | P kg/cm2 | 0.3 | 0.6 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 15 – 25 | 183 | 220 | 253 | 300 | 345 | 385 | 420 | 450 | 510 | 570 | 630 | 690 | 740 | 32 | 350 | 410 | 490 | 620 | 730 | 820 | 900 | 960 | 1080 | 1200 | 1320 | 1440 | 1560 | 40 | 440 | 520 | 610 | 780 | 900 | 1000 | 1090 | 1180 | 1350 | 1500 | 1650 | 1790 | 1930 | 50 | 460 | 560 | 670 | 850 | 1000 | 1110 | 1220 | 1320 | 1500 | 1680 | 1860 | 2030 | 2200 |
|
