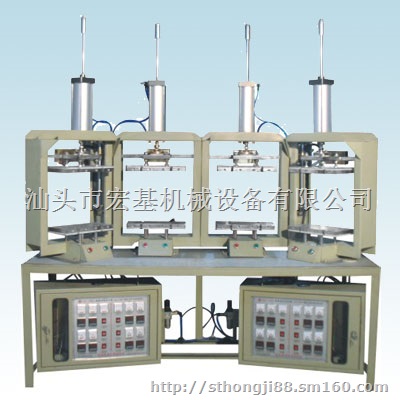

KV-168C/C-4 经济型四连体气动罩杯定型机
KV-168C/C-4 Quadruplet Bra Cup Molding Machine

用途：主要用于内衣模杯产品及其他同类产品的定型生产。
特点：
(1) 该机外形精巧，结构紧凑，运作平稳；采用内置电热管，发热均匀；温度控制精准、省电；一人同时可操作多台机器，节省空间和劳动力。适用于各种材料海绵模杯的定型。
(2) 采用可调气缸，可灵活调节成型厚度。厚薄棉杯均可压制。
技术参数：
电源/功率：220V/16KW
电热片规格：Φ12×180mm×500W-220V
模台尺寸：360mm×175mm
机台尺寸：1600mm×650mm×1700mm
适用物料：文胸、服装等面料
适用模具：文胸棉杯模具
重量：370KG
Function：It is suitable for producing molded bra cup and other similar products.
Features:
(1) This kind of machine has an exquisite figure, a compact structure and smooth operation. It adopts the internal electro-thermal pipes which heat evenly. The temperature can be controlled accurately. One operator can operate several sets at the same time, saving much space and labor-power. It is suitable for molding various foam cups.
(2) It adopts adjustable cylinders, so we can adjust them to change the molding depth. It is used for molding thick and thin bra cups.
Technical parameter:
(1) Power supply/power: 220V/16KW
(2) Specification of the electro-thermal piece: Φ 12×180mm×500W-220V
(3) Dimension of the mould table: 360mm×175mm
(4) Dimension of the machine: 1600mm×650mm×1700mm
(5) Applicable material: materials for bra and other garments
(6) Applicable moulds: moulds for foam cups
(7) Weight: 370KG

欢迎广大用户来电咨询，联系人：陈佩英（手机：15817935595），谢谢支持！
