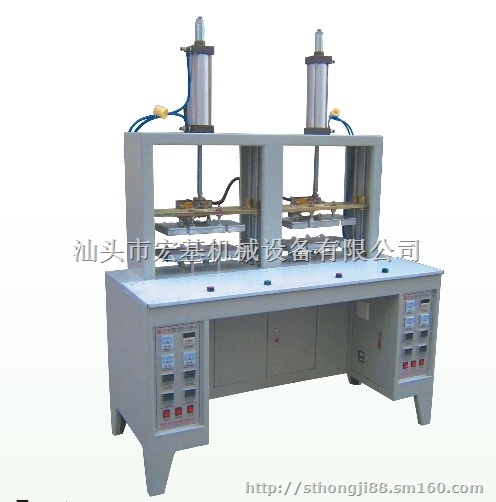

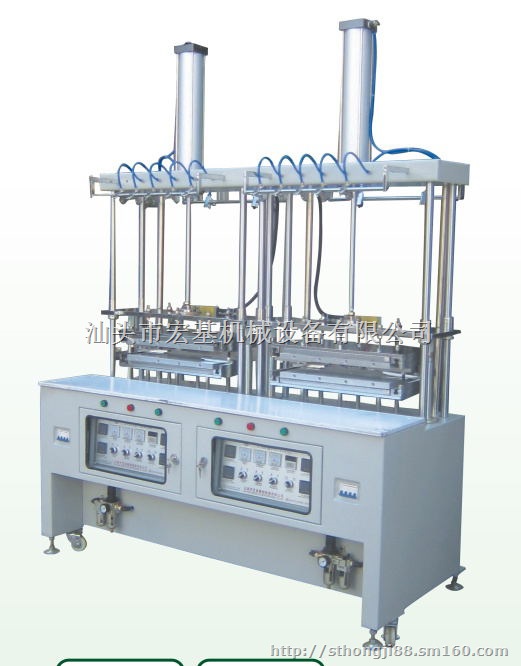

KV-168A/F-38 自动抽烟气动罩杯定型机

KV-168A/F-38 Automatic Smoke-pumping Foam Bra Cup Molding Machine

用途：主要用于内衣模杯产品及其他同类产品的定型生产。

特点：

(1) 人性化的外观设计，外加透明防护罩和自动抽烟系统，健康、环保、卫生；（选装）

(2) 兼具压框、自拉棉、探灯定位功能，避免打皱；（选装）

技术参数：

电源/功率：220V/8.5KW

电热片规格：Φ12×220mm×350W-200V

模台尺寸：450mm×220mm

机台尺寸：1450mm×710mm×1850mm

适用物料：文胸、服装等面料

适用模具：文胸棉模及定布模具

重量：350KG



Function: It is mainly used for the forming production of the bra cups and other similar products.

Features:

(1) It has humanized appearance design , transparent shield and automatic smoke-pumping system. It is healthy, environmentally and sanitary. (Selected to be installed as per customers’ needs)

(2) Having compressing-frame, automatic cotton-pulling and positioning system with searching lights. It can avoid wrinkling. (Selected to be installed as per customers’ needs)



Technical parameter:

(1) Power supply/power: 220V/ 8.5KW

(2) Specification of the electro thermal pipe: Φ12×220mm×350W-220V

(3) Dimension of the mould table: 450mm×220mm

(4) Dimension of the machine: 1450mm×710mm×1850mm

(5) Applicable material: foam or fabric for bras and other garments

(6) Applicable moulds: moulds for the foam bra cup and fabric cup

(7) Weight: 350KG


欢迎广大用户来电咨询，联系人：陈佩英（手机：15817935595），谢谢支持！
