商品详情

TESCOM 电气动控制背压液压调节阀 54-2

￥300

规格：TESCOM 电气动控制背压液压调节阀 54-2

包装：NEW

品牌：TESCOM 电气动控制

商品详情

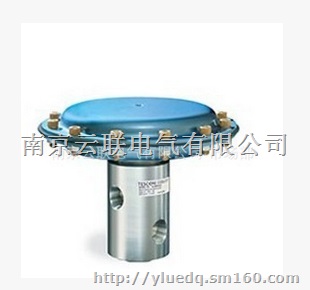

TESCOM 电气动控制背压液压调节阀 54-2300系列

产品特点

电气动控制背压液压调节阀 54-2300系列

TESCOM? 54-2300 Series backpressure hydraulic regulator is capable of flows from 5-50 GPM and is available in air load for use with the TESCOM ER3000 Electropneumatic Controller. Ideal for use in hydraulic test stands and process control.

压力范围
最大进气压力
Spring and Dome Loaded:5000 psig / 345 bar
Air Actuated:10,000 psig / 690 bar
出口压力
1000, 1500, 2500, 3500, 5000 and 10,000 psig
69.0, 103, 172, 241, 345 and 690 bar

材质

Body:303 or 316 Stainless Steel
Seat, Poppet & Sensor: 17-4 PH Stainless Steel
O-Rings: Buna-N, Viton?, Ethylene Propylene or Polyurethane
Back-up Rings: PTFE
Bonnet (Spring load only): 303 Stainless Steel
Remaining Parts: 300 Stainless Steel

操作温度
-40°F to 165°F / -40°C to 74°C

进/出口尺寸

Inlet & Outlet Port Type:SAE, NPTF
Inlet & Outlet Port Size:1/2", 3/4"

流量

Cv = 1.6

负载类型
Spring, Dome, Air
